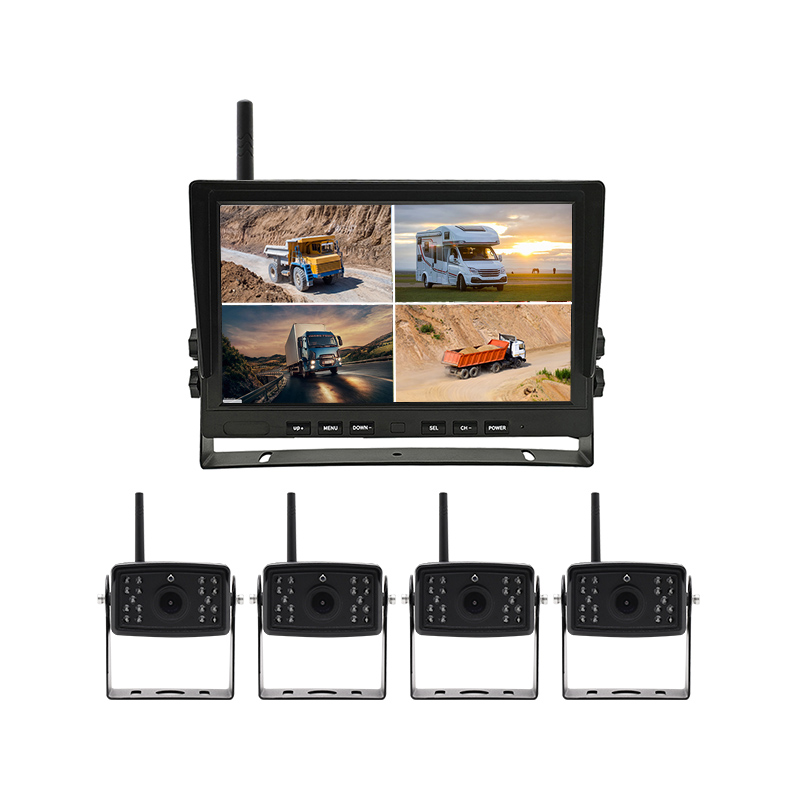

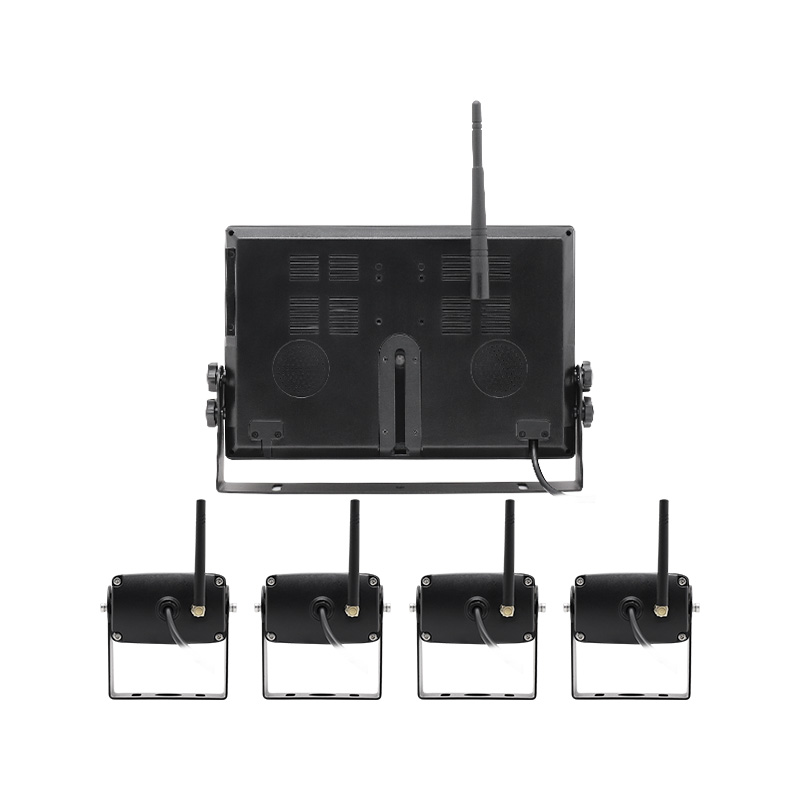

10.1″ Four Channel Flip Down Car Monitor Wireless Car Camera System

10 Inch LED Monitor And Ip69k Waterproof Car Camera System Is The Perfect Way To Easily Access Wireless Video Messages. Its Sturdy Construction And Clear Picture Make It Ideal For Any Vehicle – From Cars, Trucks And Lorries To Excavators – As A Convenient Reversing Imaging System When Paired With A Quality Wireless Backup Camera.

Multiple languages of display available: English, Dutch, French, Portuguese, Spanish, Italian, Swedish, German, Korean, Japanese, Chinese
With a remote control function
Supporting simultaneous video input from four cameras can support 2 segmentation and 4 segmentation.
The transmitting distance is 500m in open space.
The working power supply range is 12~35V, with a short-circuit protection function of the power supply

Technical Specifications

Screen Size		10.1‘’
Resolution		1024(W)* R.G.B * 600(H)
TV System		PAL/NTSC
Brightness		600cd/m²
Contrast		500:1
Active Area		154.08(W) × 85.92(H) mm
Viewing Angle		U/D:85°/85°,R/L:85°/85°
Record		support 256GB
Video Format		AHD
Mirror Flip		Non-mirror, mirror, flip, mirror flip
Video Channel		Four channel video input
Reversing Delayed		0-15s
Power Supply		12-50V,DC/<9W
Operating Temperature		-20℃ to +70℃
Storage Temperature		-30℃ to +80℃

Flip-Down Car Monitor – 10-Inch Wireless Vehicle Display for Complete Visibility

Enhance your driving safety and convenience with the YWX-1001 flip-down car monitor, a 10-inch high-definition LED monitor designed to provide a flexible and efficient vehicle video monitoring solution. Engineered for compatibility with IP69K waterproof cameras, this monitor is ideal for cars, trucks, lorries, and heavy-duty vehicles. Its compact flip-down design allows for space-saving installation, while offering powerful performance and advanced features.

📺 4-Channel Video Input with Split-Screen Support

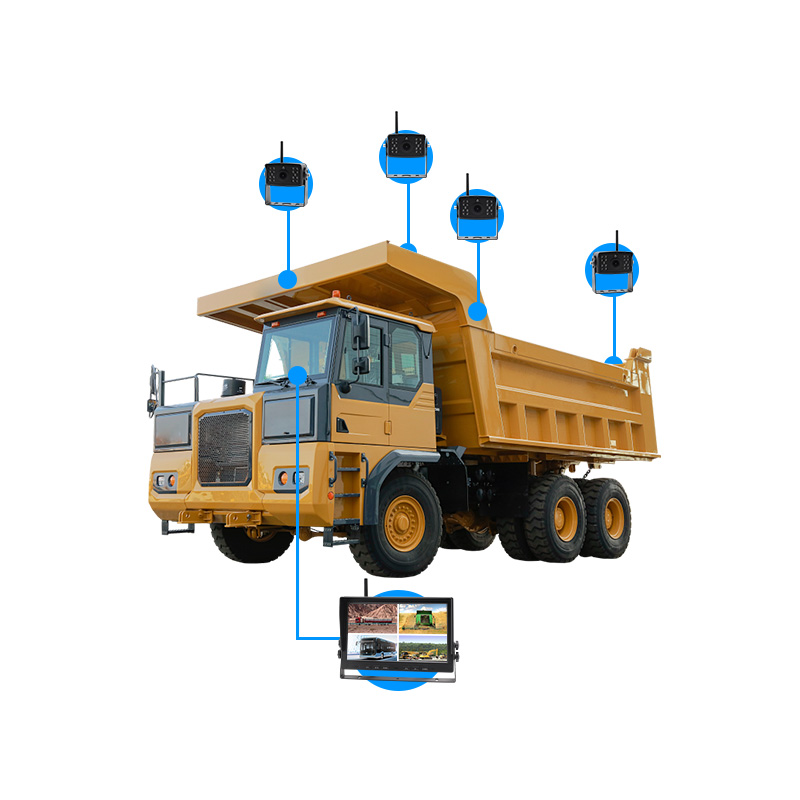

The YWX-1001 flip-down car monitor supports real-time video input from four cameras simultaneously. It allows 2-segment and 4-segment split-screen modes, helping drivers observe multiple angles at once—perfect for complex parking, reversing, or blind-spot monitoring.

🌍 Multi-Language Display for Global Use

With a user-friendly interface supporting 11 languages including English, Spanish, French, German, Dutch, Korean, Japanese, and Chinese, this flip-down car monitor is suitable for users worldwide. Switching between languages is fast and seamless, ideal for diverse environments or international fleets.

🎮 Remote Control for Convenient Operation

Control your flip-down car monitor effortlessly with the included remote control. Users can easily switch camera views, adjust brightness or contrast, and navigate settings, all while maintaining focus on driving.

🌐 Extended Wireless Transmission Range

This flip-down car monitor features a strong wireless signal that reaches up to 500 meters in open space, providing stability for long vehicles such as trailers or construction machines. No signal drops—just uninterrupted monitoring.

🔋 Wide Power Supply Compatibility with Protection

Operating on a 12V–35V power range, the flip-down car monitor is suitable for all vehicle types. It includes a built-in short-circuit protection system to ensure safety during use and protect your electrical components.

💧 Built for Harsh Environments

Pair your flip-down car monitor with IP69K waterproof backup cameras for a reliable solution even in the harshest outdoor environments. Whether you’re navigating through rain, dust, or snow, this system keeps your visibility crystal clear.

Key Features at a Glance

10″ LED high-resolution flip-down display
Supports up to 4 cameras with real-time input
Dual and quad split-screen viewing modes
500m wireless range in open space
Multi-language interface (11 languages)
Remote control included for easy adjustments
12–35V wide voltage power supply with protection
Compatible with IP69K waterproof cameras

Why Choose the YWX-1001 Flip-Down Car Monitor?

Whether you’re operating in urban traffic or off-road conditions, the YWX-1001 flip-down car monitor delivers the flexibility, visibility, and performance you need. Its flip-down design keeps your dashboard clean, while its robust feature set ensures enhanced safety and awareness for all your driving needs. Take control of your driving environment with confidence and precision.
