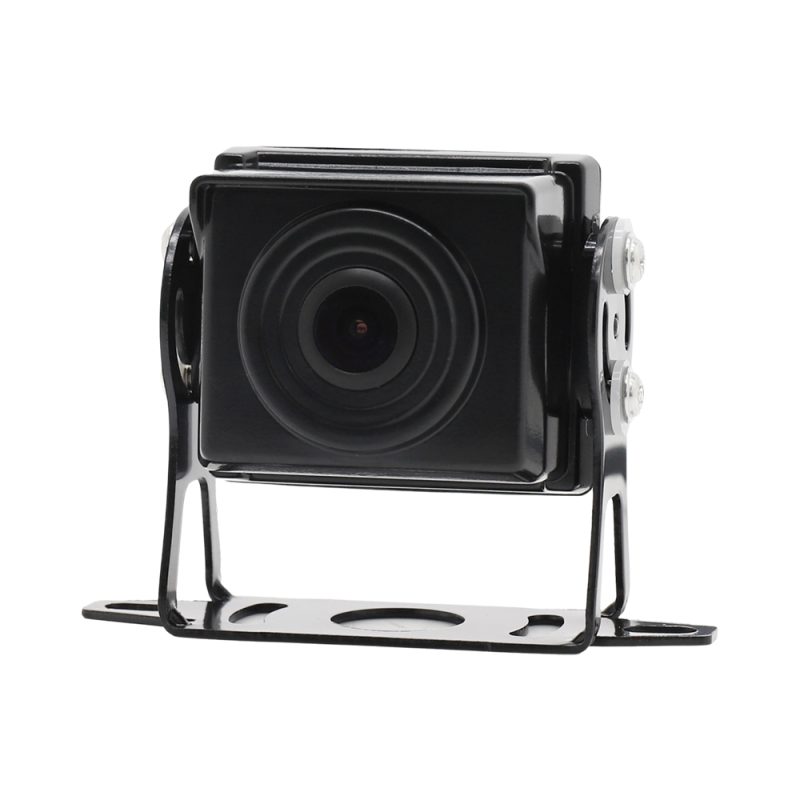

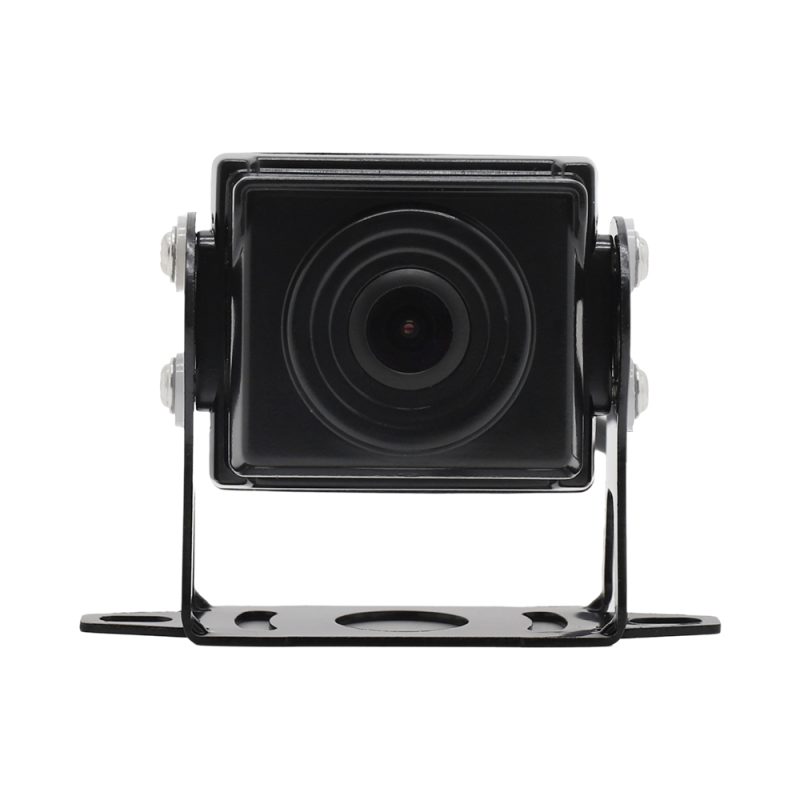

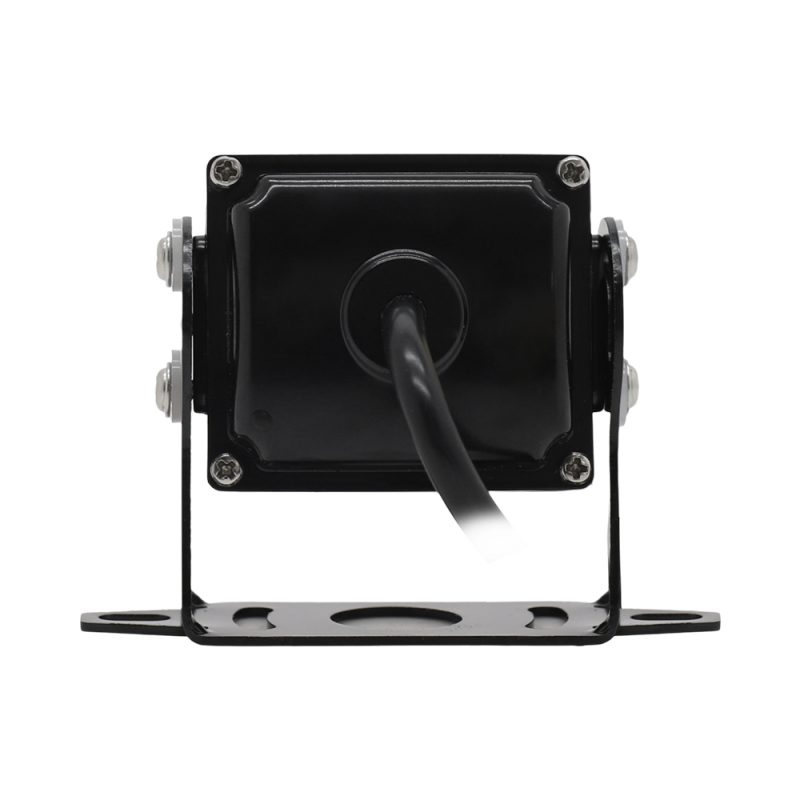

1080P AHD Camera For Truck

YWX-002 Reversing Camera Has Night Vision Function, Which Means It Can Clearly Show The Real Colors And Pictures No Matter Day Or Night. The Infrared Distance Is 7 Meters, Which Can Greatly Improve The Safety Of Night Driving And Provide Users With A Clear Vision. This Camera Has The Highest IP69k Waterproof Rate, So When It Rains Or Is Car Washed, It Will Not Get Water And Work As Usual. Also, We Will Do A Long-Term High-Pressure Soaking To Ensure The Quality Before Shipping.

Ip69k
1.3 Megapixel Sensor
Support Mirror Switching
With Night Vision Function

Technical Specifications

Image Sensor	1/3 CMOS 2083
TV System	NTSC/PAL
Effective Pixels	1920(H)*1080(V)
Sensing Area	4.880mmⅹ 3.670mm
Sync. System	Internal
Resolution	1080P/720P
Minimum Illumination	0.1 Lux (day), 0 Lux (with IR)
Microphone	Optional
Video Output	1.0 Vp-p/75 Ohm
Scanning System	interlace
Material	Alluminum alloy
Signal to noise ratio	Better than 48dB
White balance	AUTO
Gamma Consumption	0.45
Electronic Shutter	AUTO
Backlight Compensation	AUTO
Power Supply	DC12V
Lens	2.8mm
Lens Angle	125°
Current Drain	65±5mA
Operating Temperature	-20℃-70℃,RH 95% MAX
Storage Temperature	-30℃-80℃,RH 95% MAX

YWX-002 1080P AHD Camera – Rugged, Clear, and Reliable Reversing Solution

The Yuweixin YWX-002 1080P AHD camera is a high-performance automotive reversing camera designed for vehicles that demand precision, durability, and superior image clarity. Built with a 1.3 megapixel sensor and featuring powerful night vision capabilities, this camera delivers real-time monitoring in any environment.

Ultra-HD 1080P Resolution for Crisp Imaging

Capture every detail with the YWX-002 1080P AHD camera. Featuring an advanced 1.3 megapixel sensor, it supports full HD resolution to provide sharp, lifelike video during both day and night. Whether used in trucks, buses, RVs, or construction equipment, it guarantees outstanding visibility.

Mirror Switching Function for Flexible Installation

This 1080P AHD camera supports mirror image switching, making it suitable for various vehicle types and mounting preferences. Adjust your viewing direction to match the position of your installation with ease.

Superior Waterproof Protection – IP69K Rated

Engineered for durability, the YWX-002 1080P AHD camera holds an IP69K waterproof rating—the highest in its class. It withstands high-pressure water, rainstorms, mud, and harsh washdowns, ensuring dependable operation in extreme weather and rugged environments.

Night Vision for 24/7 Safety

Equipped with strong night vision functionality, the 1080P AHD camera offers clear visuals even in complete darkness. With an infrared distance of up to 7 meters, it enhances safety during nighttime reversing and low-light operations.

Key Features of the YWX-002 1080P AHD Camera

1080P AHD camera with 1.3 megapixel CMOS sensor
Mirror switch support for flexible viewing orientation
IP69K waterproof for use in extreme environments
Infrared night vision up to 7 meters for improved nighttime safety
Real-color video output, both day and night
Vibration and shock-resistant design for industrial use
Ideal for commercial vehicles, agricultural equipment, and heavy-duty machinery
Each unit undergoes long-term high-pressure soaking tests before shipping

Why Choose Our 1080P AHD Camera?

The YWX-002 1080P AHD camera stands out with its industrial-grade build and smart features tailored for demanding vehicles. With waterproof integrity, mirror switching, and low-light clarity, it significantly reduces blind spots and enhances the safety of your operations.

Trust Yuweixin for Advanced 1080P AHD Camera Technology

Backed by Yuweixin’s commitment to quality and reliability, the YWX-002 1080P AHD camera is your trusted solution for reversing and blind spot monitoring. Stay safe, stay aware, and drive with confidence using our high-definition camera technology.–https://www.yuweixin.com/
