7″ Wireless Ahd Monitor 4CH Rear Camera System

7 Inch LED Monitor And Ip69k Waterproof Car Camera System Is The Perfect Way To Easily Access Wireless Video Messages. Its Sturdy Construction And Clear Picture Make It Ideal For Any Vehicle – From Cars, Trucks And Lorries To Excavators – As A Convenient Reversing Imaging System When Paired With A Quality Wireless Backup Camera.

Multiple languages of display available: English, Dutch, French, Portuguese, Spanish, Italian, Swedish, German, Korean, Japanese, Chinese
With a remote control function
Supporting simultaneous video input from four cameras can support 2 segmentation and 4 segmentation.
The transmitting distance is 500m in open space.
The working power supply range is 12~35V, with a short-circuit protection function of the power supply

Technical Specifications

Screen Size		7‘’
Resolution		1024(W)* R.G.B * 600(H)
TV System		PAL/NTSC
Brightness		600cd/m²
Contrast		500:1
Active Area		154.08(W) × 85.92(H) mm
Viewing Angle		U/D:85°/85°,R/L:85°/85°
Record		support 256GB
Video Format		AHD
Mirror Flip		Non-mirror, mirror, flip, mirror flip
Video Channel		Four channel video input
Reversing Delayed		0-15s
Power Supply		12-50V,DC/<9W
Operating Temperature		-20℃ to +70℃
Storage Temperature		-30℃ to +80℃

Wireless AHD Monitor – Professional-Grade Visual Safety System for Vehicles

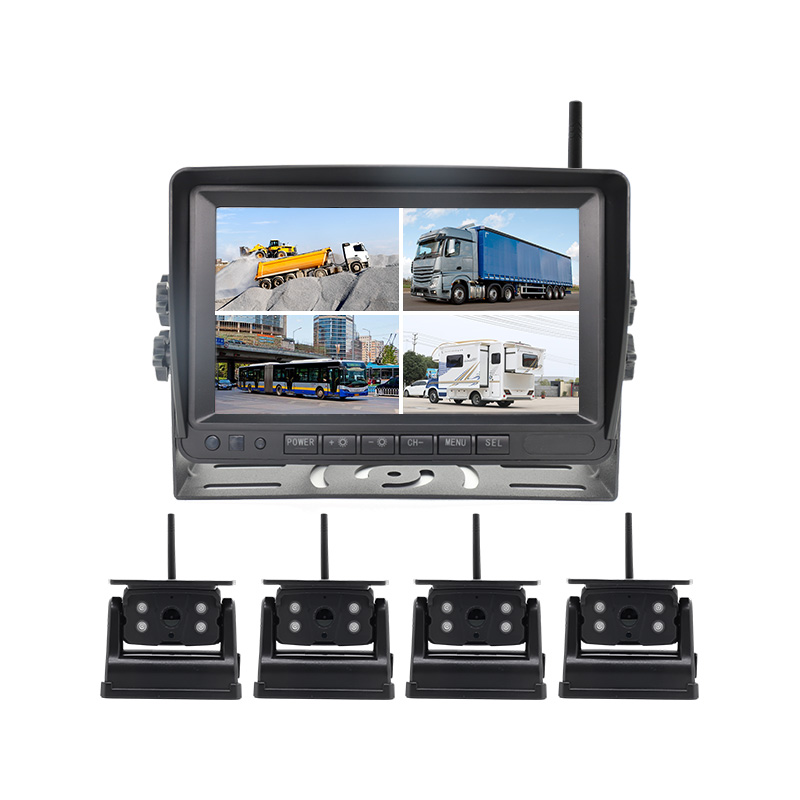

The YWX-730 wireless AHD monitor is a high-definition 7-inch LED display system designed to provide real-time visibility, improved driving safety, and effortless wireless camera integration. Ideal for trucks, lorries, cars, excavators, and other commercial vehicles, this monitor system supports up to four simultaneous camera feeds and ensures high transmission stability over long distances.

📺 7-Inch LED Display with Multi-Camera Viewing

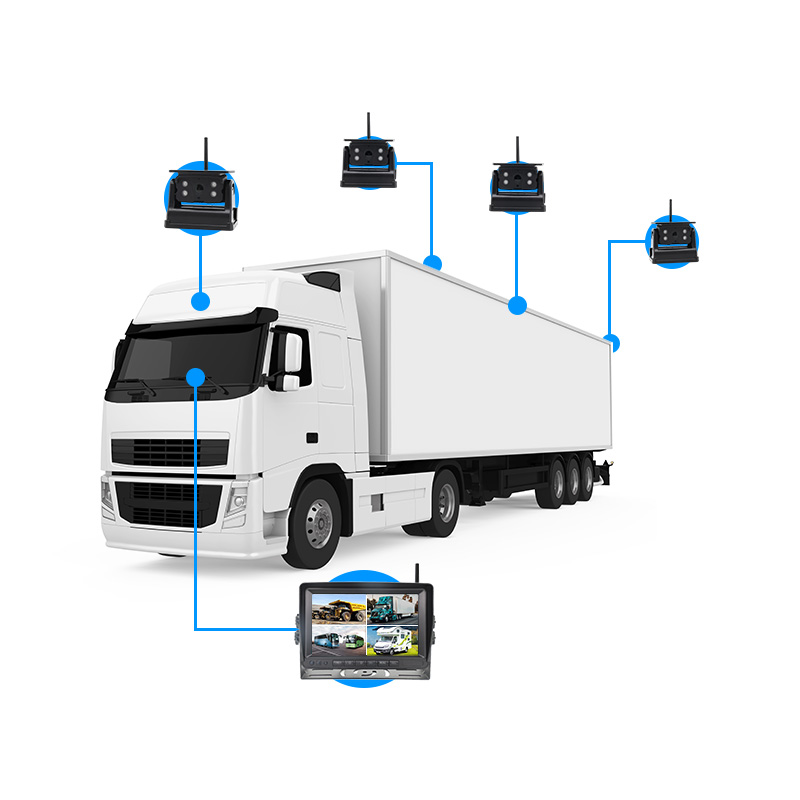

The wireless AHD monitor offers a crisp and vibrant 7-inch display, delivering excellent clarity even in challenging lighting environments. It supports simultaneous video input from up to four cameras, with optional 2-split and 4-split screen modes, giving drivers a complete view of their surroundings at a glance.

🌍 Multi-Language Support for Global Use

With support for multiple languages including English, Dutch, French, Portuguese, Spanish, Italian, Swedish, German, Korean, Japanese, and Chinese, this wireless AHD monitor is built for international markets and multilingual fleets. No matter where your drivers are from, this device makes operation simple and intuitive.

📡 Wireless Transmission Up to 500 Meters

One of the standout features of the YWX-730 is its wireless transmission range of up to 500 meters in open space, ensuring strong, interference-free signal coverage. Whether you’re driving a large construction vehicle or a long-haul truck, this wireless AHD monitor maintains uninterrupted video communication.

🎮 Remote Control & Flexible Power Supply

The included remote control function allows for easy access to all monitor settings, including image switching, volume adjustment, and display modes. It operates on a 12~35V wide voltage power supply and features built-in short-circuit protection, making it compatible and safe for all types of vehicles.

🌧️ Rugged Build with IP69K Waterproof Camera Compatibility

Designed to work seamlessly with IP69K waterproof cameras, this wireless AHD monitor system is durable and ideal for rugged outdoor use. When paired with a reliable wireless reversing camera, it becomes the ultimate visual assistant for reversing, parking, or maneuvering in tight spaces.

📋 Product Highlights

7-inch LED AHD screen with high-definition resolution
Supports 4-camera input with 2/4 split screen options
Up to 500m wireless transmission distance (open space)
Multi-language display: English, Dutch, French, Spanish, and more
Wide voltage support: 12~35V with short-circuit protection
Remote control included for convenient adjustments
Works with IP69K waterproof wireless cameras
Easy installation for cars, trucks, excavators, and more

Upgrade Your Fleet with the YWX-730 Wireless AHD Monitor

Whether you’re equipping a single vehicle or an entire fleet, the YWX-730 wireless AHD monitor is a reliable and user-friendly solution to improve driving safety, reduce blind spots, and ensure full visual awareness. Its advanced features and rugged construction make it the perfect match for modern vehicle applications.
