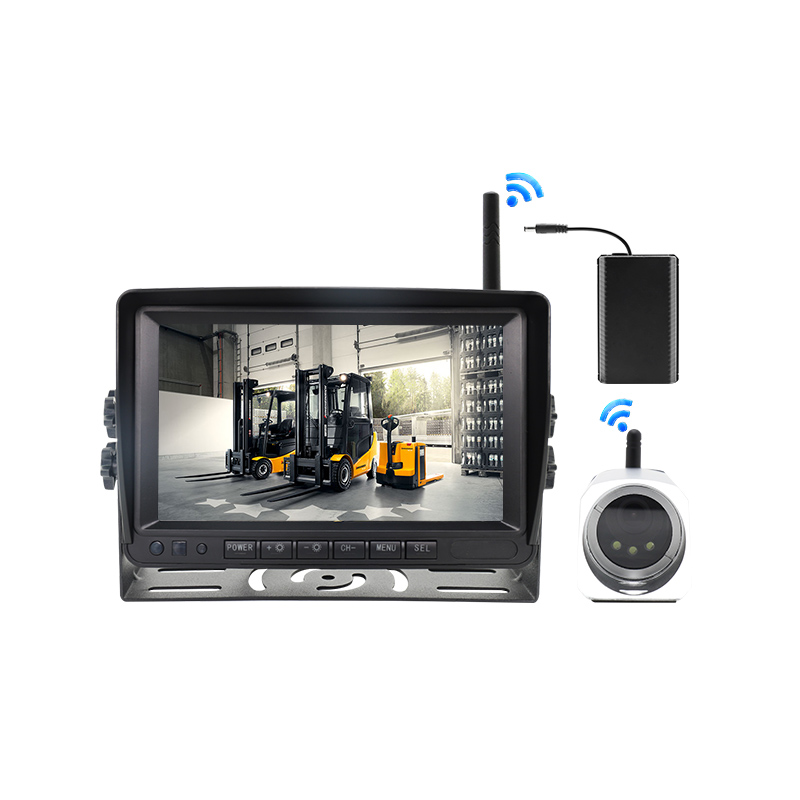

Magnetic Mount Forklift Camera System with 7” Digital HD Display

This 7″ Wireless Forklift Camera Kit Features A Magnetic Mount HD Camera With Rechargeable Battery And Stable 2.4ghz Signal, Ensuring Easy Installation And Clear Real-Time Video For Safer Industrial Operations.

• 720P high resolution
• Support both manual pairing and auto pairing
• Wireless Transmission Range – Up to 328ft (100m)
• Supports dual screen mode, single screen mode, and automatic display mode loop switching; users can have any combination of channels in dual view display
• IP69K Waterproof and dustproof cameras, IR night vision
• Screen brightness automatically dims when the environment gets dark

Technical Specifications

LCD size	7/9/10.1inch
Resolution	10243 (RGB)600
Contrast	1500:1
Brightness	600cd/㎡
TV System	PAL/NTSC
Video Channel	2 channels
Operating Frequency	2412 – 2483.5 MHz
Receiving Sensitivity	11Mbps-86dBm@8%
Decompression Form	MPEG4
Transmit Output Power	20dBm@11b MAX
Modulation	OFDM
Time Delay	150ms Max
Transmitting Distance	300 Meters(Open area)
Power Supply	DC8-50V
Power Consumption	1.85w
Operating Temperature	-20℃ to +70℃ , RH90%
Storage Temperature	-30℃ to +80℃ , RH90%
Image Sensor	1/2.9 CMOS
View Angle	45degree (Camera)
IP Protection	IP69K (Camera)
Battery capacity	9600mah(strong magnetic)
Working Hour	12 hours(day time) 8 hours(night time)
Voltage	12V(battery)
Charging time	7hours

Forklift Camera System – Wireless 7” Monitor Kit for Safer Operations

Enhance visibility and improve workplace safety with our professional-grade forklift camera system. Designed specifically for industrial environments, this 7-inch wireless HD camera kit features 720P resolution, IR night vision, and a magnetic mount for effortless installation. With advanced pairing modes and flexible display options, it’s the ultimate tool for warehouse, logistics, and factory settings.

📺 High-Resolution 720P Display

The heart of this forklift camera system is its 7-inch HD monitor delivering crisp 720P resolution. Whether you’re operating in low-light warehouses or navigating tight spaces, this system provides clear real-time visuals for precise maneuvering.

📶 Reliable Wireless Transmission – Up to 328ft

With a robust 2.4GHz wireless signal, this forklift camera system supports transmission distances of up to 328 feet (100 meters) in open environments. Enjoy a stable, uninterrupted connection between the camera and monitor—even in areas with heavy machinery or metal interference.

🔄 Dual & Loop Display Modes

Operators can choose between single-screen, dual-screen, or automatic loop switching. The forklift camera system allows full flexibility by supporting any combination of camera channels in dual-view mode, enabling a personalized viewing setup to match different operational needs.

🔧 Manual & Auto Pairing for Easy Setup

This forklift camera system supports both manual and automatic camera pairing. Setup is fast and user-friendly, ensuring you’re up and running in minutes without needing technical expertise.

🌙 Night Vision & Auto Brightness

The camera is equipped with infrared night vision, making it perfect for dark warehouses or evening shifts. The screen brightness automatically adjusts to ambient lighting, reducing eye strain and ensuring a comfortable viewing experience throughout the day.

💧 Rugged IP69K Waterproof Design

Built for industrial use, the camera in this forklift camera system is IP69K rated for waterproof and dustproof protection. It resists high-pressure washing, harsh weather, and extreme temperatures, delivering reliable performance in demanding work environments.

Key Features of the Forklift Camera System

720P high-resolution HD video
Wireless range up to 328ft (100m)
Magnetic mount camera with rechargeable battery
Supports dual and single screen modes
Manual and auto pairing are supported
IR night vision + auto-dimming display
IP69K waterproof and dustproof cameras
Stable 2.4GHz wireless signal

Why Choose Our Forklift Camera System?

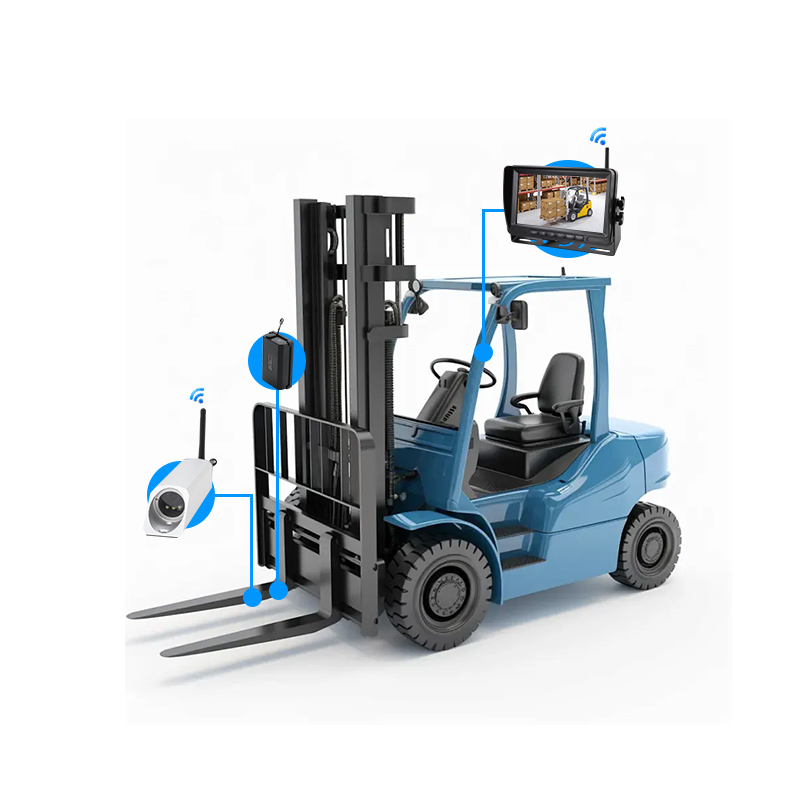

Whether you’re lifting loads, navigating narrow aisles, or reversing in blind spots, this forklift camera system gives you the real-time visuals you need to operate safely and efficiently. With rugged durability, plug-and-play design, and intelligent display features, it’s a smart investment for any industrial operation.
