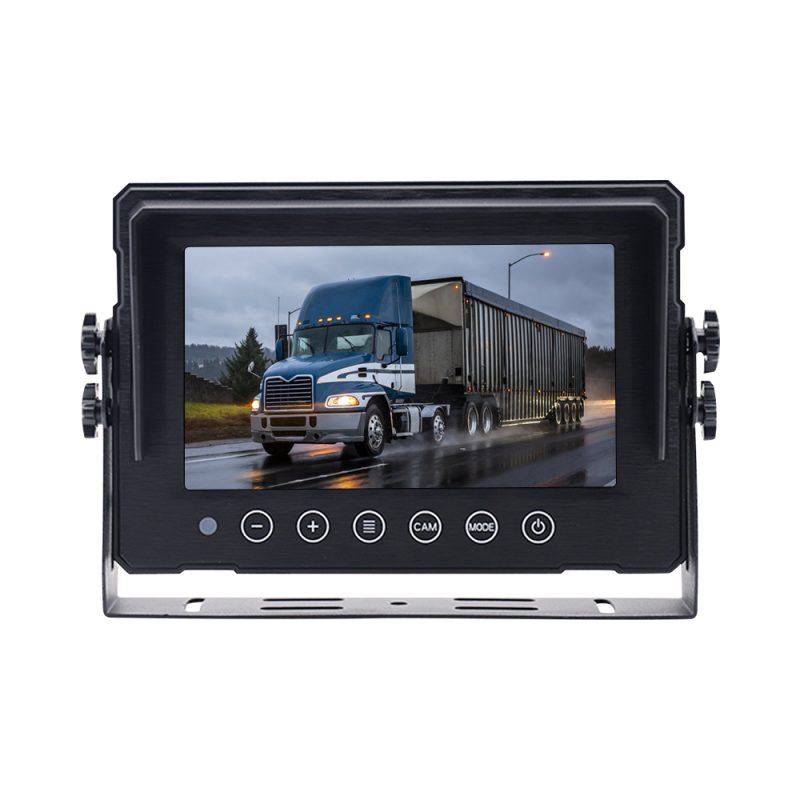

4 Ch 7 Inch IP67 Waterproof Digital AHD LCD Monitor

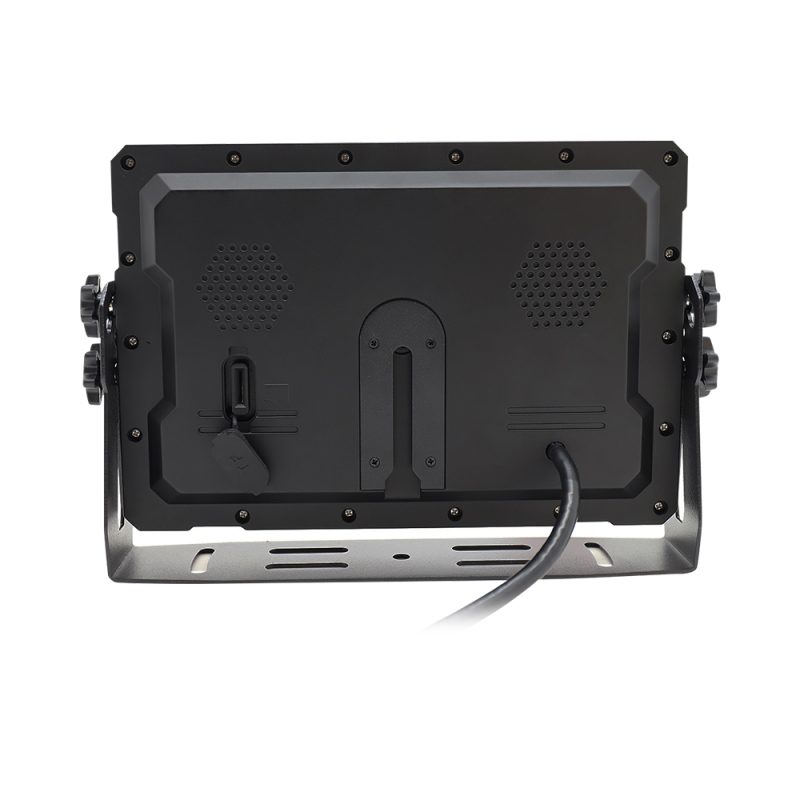

4 Ch 7 Inch IP67 Waterproof Digital AHD LCD Monitor-2

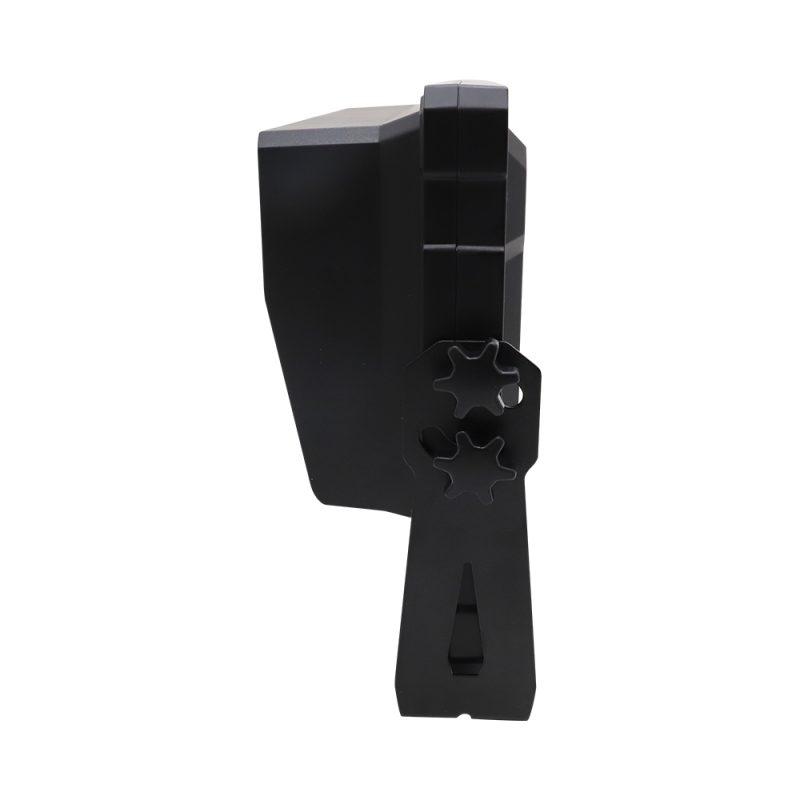

4 Ch 7 Inch IP67 Waterproof Digital AHD LCD Monitor-4

YWX-7005 7 Inch Digital Ahd Lcd Monitor That Offers An Impressively Bright Display. With Four Screen, Single Screen And Other Automatic Switching Modes Plus Two Camera Video Inputs For Simultaneous Viewing, This Monitor Has Gone Through Rigorous Testing To Ensure Reliable Quality In Even The Harshest Of Conditions With Its Ip68 Waterproof Rating And Metal Waterproof Bracket.

Waterproof Ip68
With Remote Control Function
Multi-Languages Of Display Available
Supports Video Input From 4 Cameras At The Same Time
Support Audio Input From 4 Camera At A Time (Optional)
Support 256GB Storage
Images Can Be Flipped Up And Down From Left To Right
With 9-35v Wide Voltage Of Power Supply

Technical Specifications

Model	YWX-7005
Screen Size	7″
Ratio	16:9
Resolution	1024（W）* R.G.B * 600(H)
TV System	PAL/NTSC/AUTO
Brightness	600cd/㎡
Contrast	500:1
Active Area	154.08(W) × 85.92(H) mm
Viewing Angle	U/D:85°/85°,R/L:85°/85°
Image Settings	Brightness、Color、Contrast
Video Format	CVBS/AHD
Mirror Flip	Non-mirror, mirror, flip, mirror flip
Video Channel	Four channel video input
Reverse Function	Single way back (ruler setting function)
Reversing Delayed	0-15s
Scale Function	Two scale ruler and automatic ruler switch
Power Supply	9-35V，DC/<9W
Operating Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
