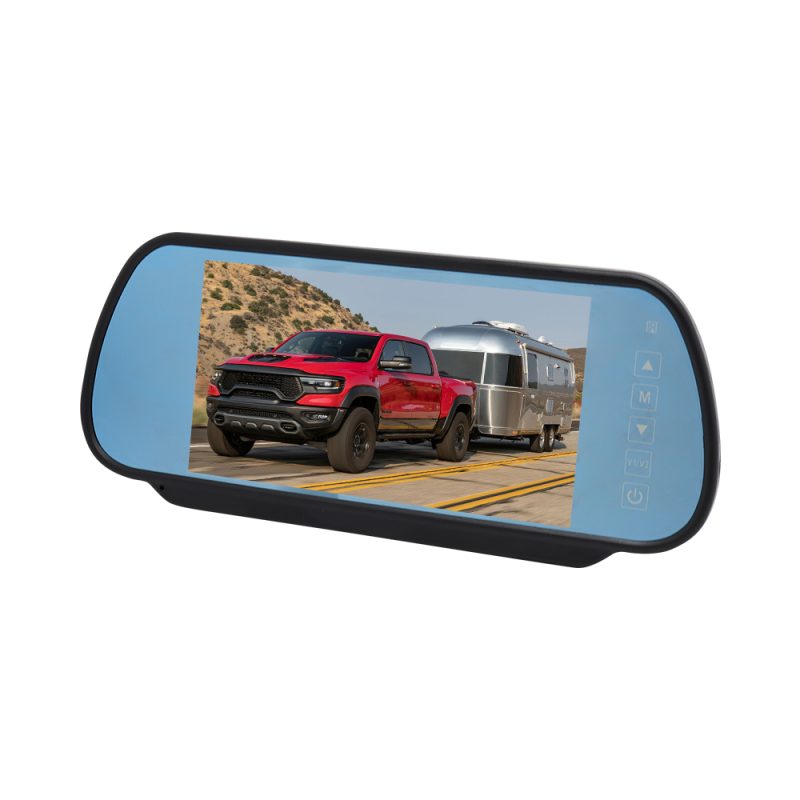

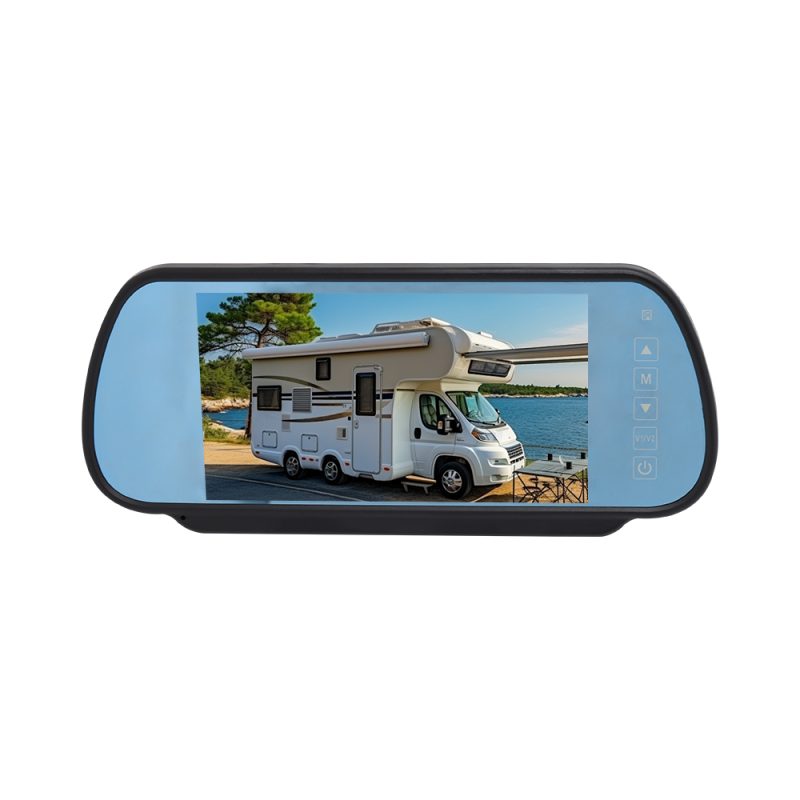

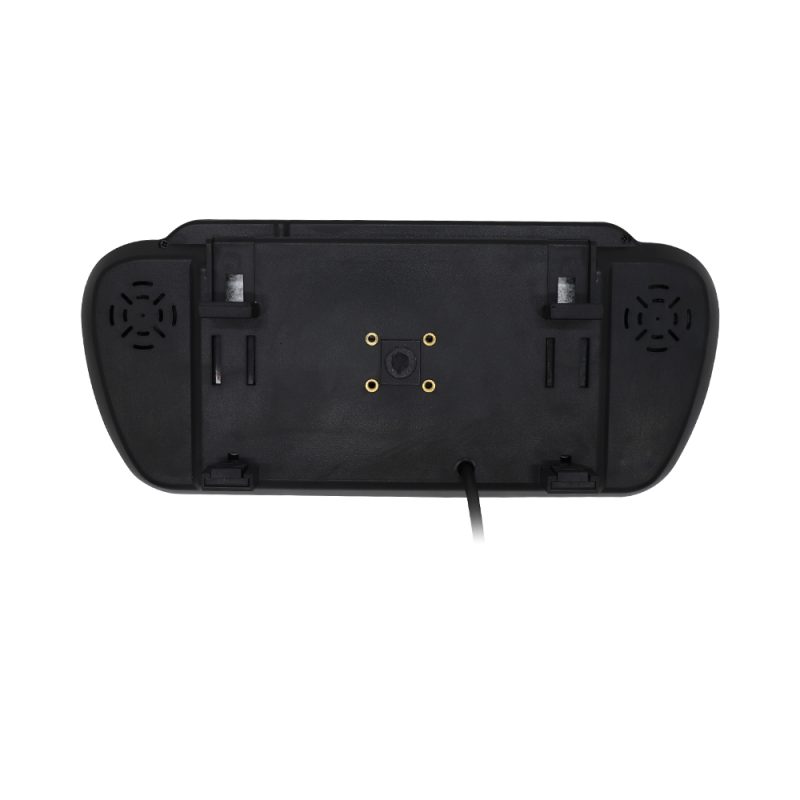

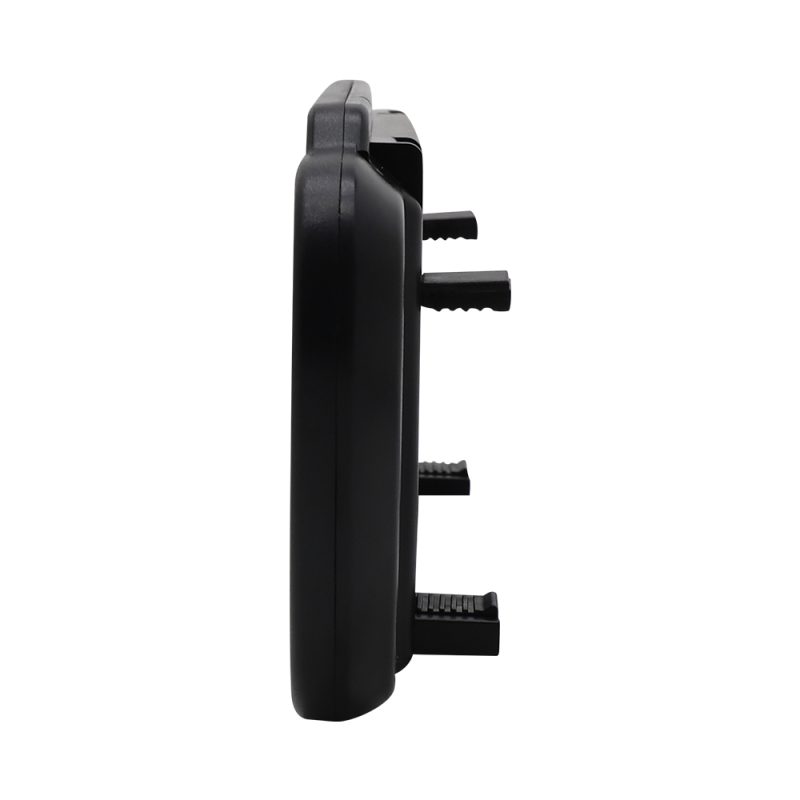

7 Inch HD LCD Rearview Mirror Monitor With Speaker
YWX-700h is a premium 7-inch HD LCD rearview mirror monitor with remote control for easy use and installation. It supports two video inputs and one audio input, with automatic switching when the second camera is activated. The monitor offers crystal-clear display resolution, realistic colors, and a flip-up/down feature for optimal viewing angles, making it an excellent choice for smoother driving.
- Display With Speaker
- With Remote Control Function
- Supporting Simultaneous Audio Input From One Camera (Optional)
- Supports Video Input From Two Cameras At The Same Time
- Images Can Be Flipped Up And Down From Left To Right
- With Short Circuit Protection Function Of Power Supply
Technical Specifications
| Model | YWX-700H |
| Screen Size | 7″ |
| Ratio | 16:9 |
| Resolution | 800（W）* R.G.B * 480(H) |
| TV System | PAL/NTSC/AUTO |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Active Area | 154.08(W) × 85.92(H) mm |
| Viewing Angle | U/D:70°/70°,R/L:50°/70° |
| Image Settings | Brightness、Color、Contrast |
| Video Format | CVBS |
| Mirror Flip | Non-mirror, mirror, flip, mirror flip |
| Video Channel | Two channel video input |
| Reverse Function | Single way back (ruler setting function) |
| Reversing Delayed | 0-15s |
| Scale Function | Two scale ruler and automatic ruler switch |
| Power Supply | 9-35V，DC/<7W |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
