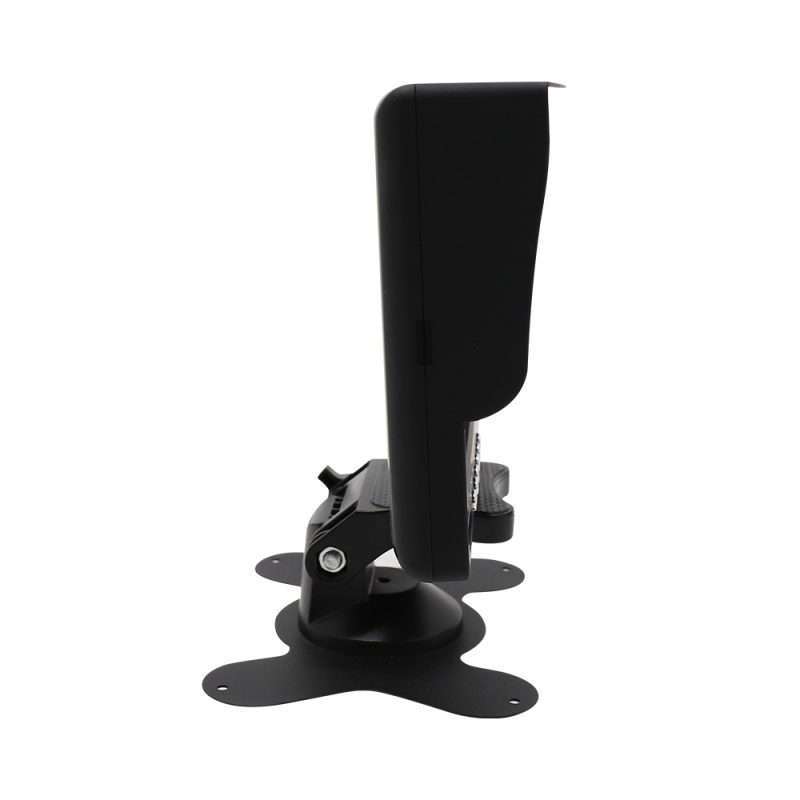

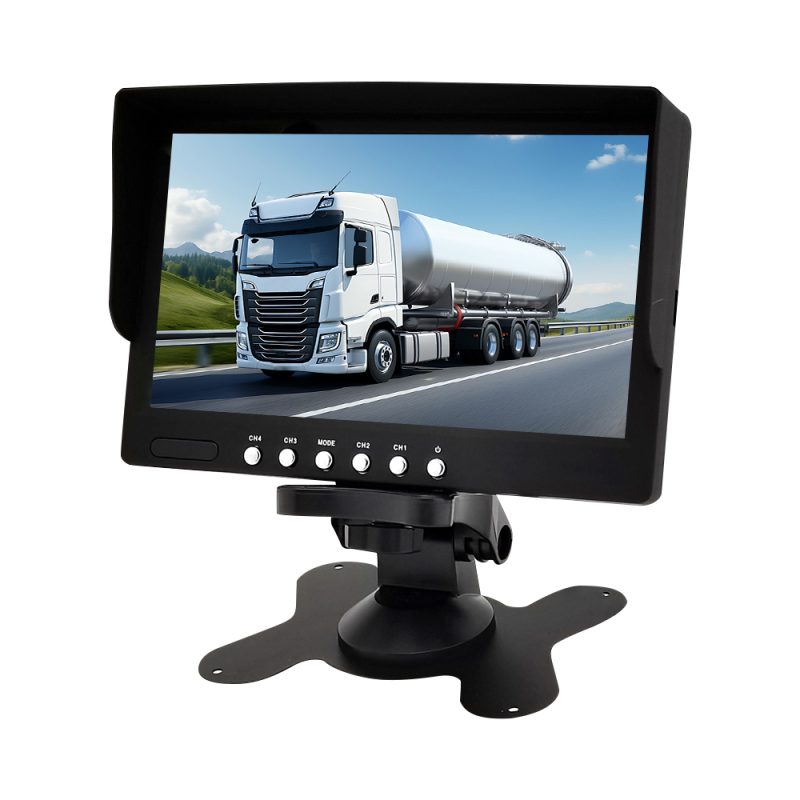

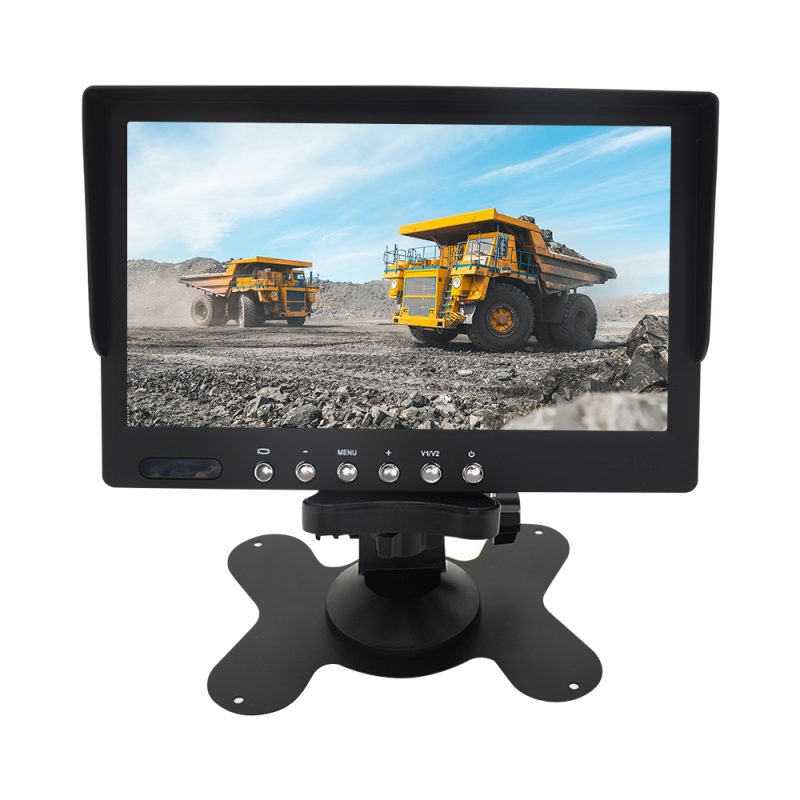

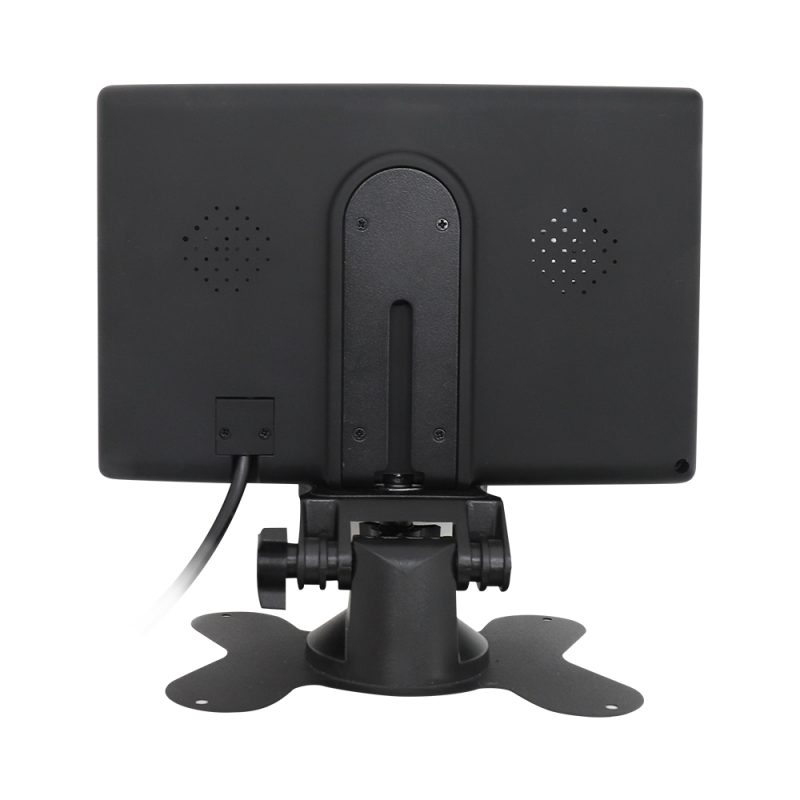

High Bright Cvbs And AHD 7 Inch Digital LCD Monitor

High Bright Cvbs And AHD 7 Inch Digital LCD Monitor-4

High Bright Cvbs And AHD 7 Inch Digital LCD Monitor-3

YWX-728 7-Inch High Bright Digital Lcd Monitor Provides Crystal Clear Images With Two Options For Signal Compatibility: Cvbs And Ahd. Easily Attachable To Cars, School Buses, Traffic Patrol Vehicles Or Trailers – An Additional Hd Rearview Camera Ensures Maximum Visibility From All Angles! No More Blind Spots; Just Pure Peace Of Mind On Every Journey You Take.

With Remote Control Function
Multi-Languages Of Display Available
Supports Video Input From 2 Cameras
Support Audio Input From 4 Camera At A Time (Optional)
Images Can Be Flipped Up And Down From Left To Right
With 9-35v Wide Voltage Of Power Supply

Technical Specifications

Model	YWX-728
Screen Size	7″
Ratio	16:9
Resolution	1024（W）* R.G.B * 600(H)
TV System	PAL/NTSC/AUTO
Brightness	600cd/㎡
Contrast	500:1
Active Area	154.08(W) × 85.92(H) mm
Viewing Angle	U/D:85°/85°,R/L:85°/85°
Image Settings	Brightness、Color、Contrast
Video Format	CVBS/AHD
Mirror Flip	Non-mirror, mirror, flip, mirror flip
Video Channel	Two channel video input
Reverse Function	Single way back (ruler setting function)
Reversing Delayed	0-15s
Scale Function	Two scale ruler and automatic ruler switch
Power Supply	9-35V，DC/<9W
Operating Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
