Truck Backup Camera Waterproof 16 LED Night Vision With Metal Bracket

YWX-801 Reversing Camera Has Night Vision Function, Which Means It Can Clearly Show The Real Colors And Pictures No Matter Day Or Night. The Infrared Distance Is 7 Meters, Which Can Greatly Improve The Safety Of Night Driving And Provide Users With A Clear Vision. This Camera Has The Highest IP69k Waterproof Rate, So When It Rains Or Is Car Washed, It Will Not Get Water And Work As Usual. Also, We Will Do A Long-Term High-Pressure Soaking To Ensure The Quality Before Shipping.

IP69K
1.3 megapixel sensor
Support mirror switching
With night vision function

Technical Specifications

Image Sensor	1/3 CMOS 2083
TV System	NTSC/PAL
Effective Pixels	1920(H)*1080(V)
Sensing Area	4.880mmⅹ 3.670mm
Sync. System	Internal
Resolution	1080P/720P
Minimum Illumination	0.1 Lux (day), 0 Lux (with IR)
Microphone	Optional
IR LED Qty	16PCS
Video Output	1.0 Vp-p/75 Ohm
Scanning System	interlace
AGC	AUTO
Signal to noise ratio	Better than 48dB
White balance	AUTO
Gamma Consumption	0.45
Electronic Shutter	AUTO
Backlight Compensation	AUTO
Power Supply	DC12V
Lens	2.8mm
Lens Angle	115°
Current Drain	65±5mA
Operating Temperature	-20℃-70℃,RH 95% MAX
Storage Temperature	-30℃-80℃,RH 95% MAX

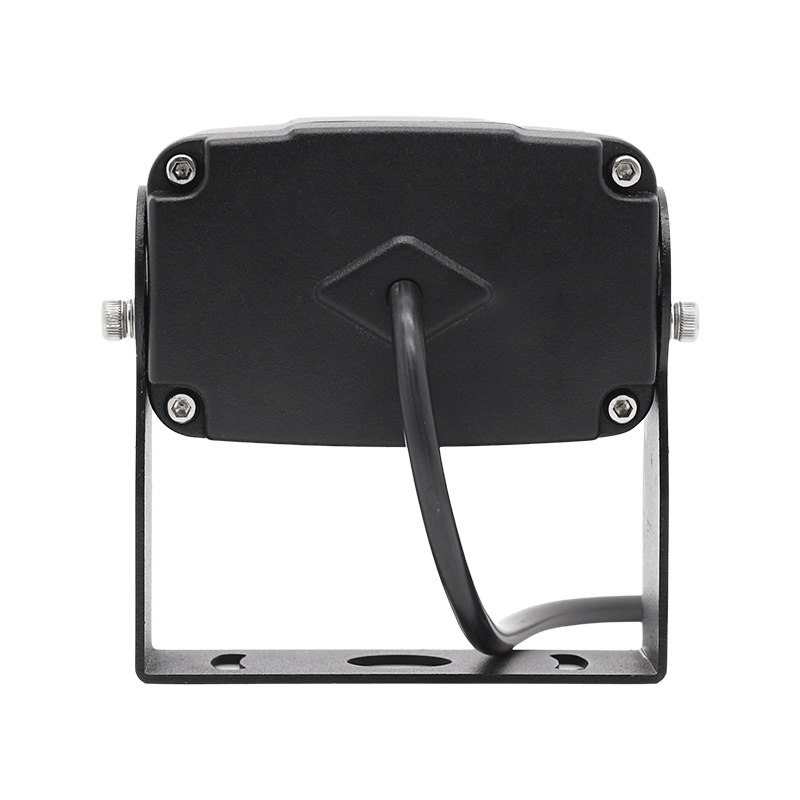

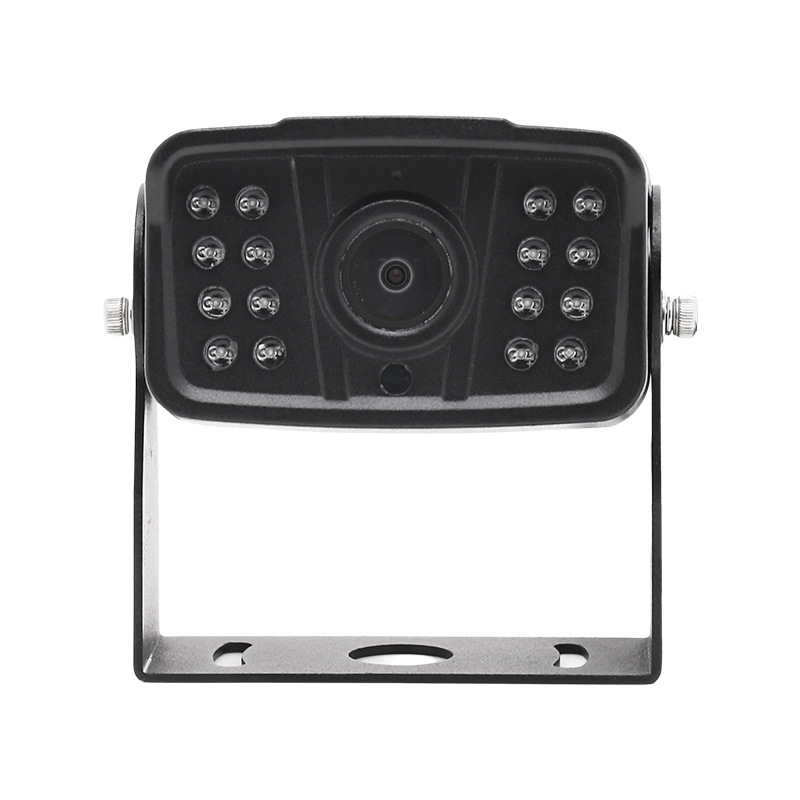

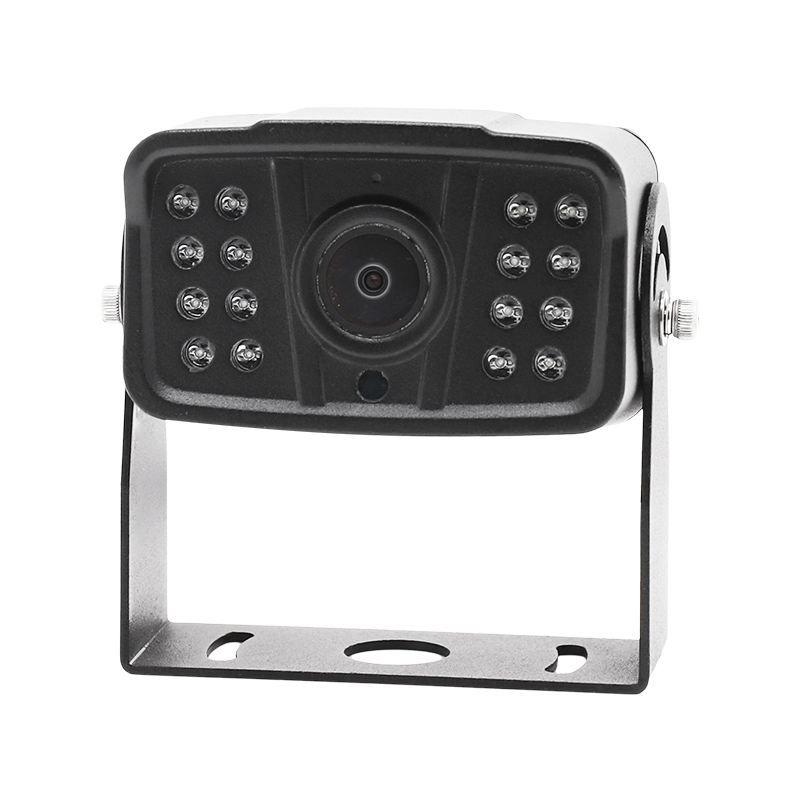

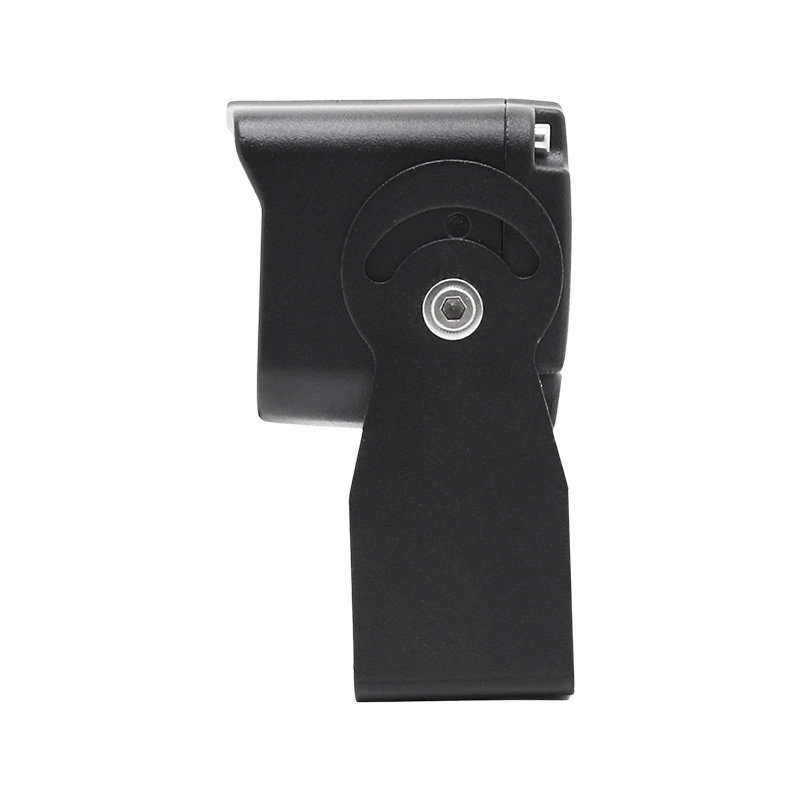

YWX-801 Truck Backup Camera

The YWX-801 truck backup camera is specifically engineered to enhance visibility and safety for trucks and other large vehicles. With its high-performance 1.3-megapixel sensor, superior night vision capabilities, and IP69K waterproof rating, this camera ensures clear, real-time visuals in all conditions. Whether driving in heavy rain, during the night, or on challenging terrains, the YWX-801 offers consistent performance and peace of mind for drivers.

Key Features

📷 1.3MP High-Definition Sensor

Equipped with a high-quality 1.3-megapixel sensor, the truck backup camera delivers sharp, true-color images that help drivers better observe obstacles and surroundings when reversing or maneuvering in tight spaces.

🌙 Night Vision with 7M Infrared Range

Designed to perform in low-light and nighttime environments, the YWX-801 truck backup camera features powerful infrared LEDs that provide a clear view up to 7 meters. This allows drivers to confidently operate vehicles in dark alleys, loading docks, or poorly lit job sites.

🔁 Mirror Image Switching

The camera supports mirror image switching, allowing it to be configured for various installation needs. Whether installed at the rear, side, or front of a vehicle, the truck backup camera ensures the correct viewing orientation for optimal performance and safety.

💦 IP69K Waterproof Protection

Rated at IP69K, the highest level of waterproof protection, the YWX-801 truck backup camera is fully sealed against water, dust, and high-pressure sprays. It continues to function flawlessly even after car washes or in heavy rain, ensuring long-term durability in all weather conditions.

🔧 Rugged Design for Harsh Environments

Built to endure vibration, mud, dust, and extreme temperatures, this truck backup camera is ideal for heavy-duty trucks, trailers, construction vehicles, and more. Its sturdy housing and compact design make installation easy and stable.

✅ Comprehensive Quality Testing

Each unit is subjected to high-pressure soaking tests to ensure consistent performance before shipping. Our commitment to quality ensures that every truck backup camera provides long-lasting reliability and unmatched clarity.

Application Scenarios

Heavy-duty truck reversing
Semi-trailer safety monitoring
Agricultural and construction vehicles
Delivery fleet camera systems
RV and bus blind spot coverage

Why Choose YWX-801 Truck Backup Camera?

The YWX-801 truck backup camera combines cutting-edge technology with rugged engineering to deliver unparalleled performance. Whether you’re navigating complex worksites or backing into tight loading zones, this camera provides the visibility you need to operate safely and efficiently. With its night vision, waterproofing, and HD sensor, it’s the smart choice for professional drivers and fleet operators who value safety and precision.
