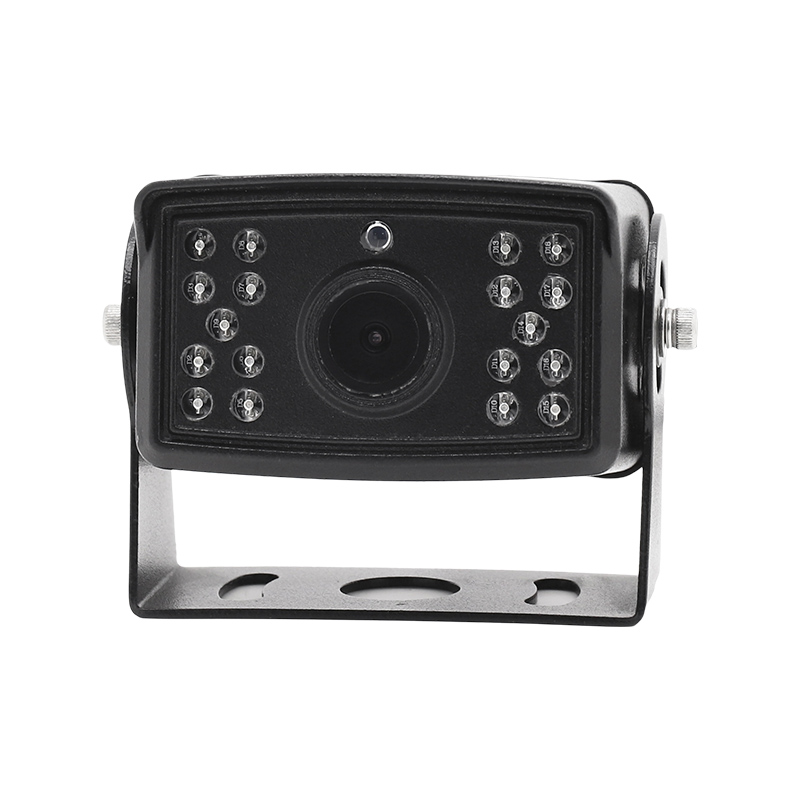

Waterproof Night Vision Truck Camera System with 18 LED Light

Waterproof truck camera system
Waterproof Night Vision Truck Camera System with 18 LED Light
Waterproof truck camera system with 18 LED Night Vision
Night Vision Truck Camera System
Waterproof truck camera system
Waterproof Night Vision Truck Camera System with 18 LED Light
Waterproof truck camera system with 18 LED Night Vision
Night Vision Truck Camera System

The YWX-802 truck camera system is designed to deliver clear visibility in any driving condition. Thanks to its advanced night vision function, it accurately displays real colors and images both during the day and at night. With an infrared distance of up to 7 meters, it significantly enhances night-driving safety by giving drivers a sharper view of the road.

In addition, the camera boasts the industry’s highest IP69K waterproof rating. Whether driving through heavy rain or washing the vehicle, it continues to perform reliably without water intrusion. To guarantee long-term durability, each unit undergoes high-pressure soaking tests before shipment, ensuring dependable quality.

This robust truck camera system is equipped with a 1.3-megapixel sensor, mirror switching support, and powerful night vision features, making it an ideal safety upgrade for commercial vehicles.

Technical Specifications

Image Sensor 1/3 CMOS  2083
TV System NTSC/PAL
Effective Pixels 1920(H)*1080(V)
Sensing Area 4.880mmⅹ 3.670mm
Sync. System Internal
Resolution 1080P/720P
Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)
Microphone Optional
IR LED Qty 18PCS
Video Output 1.0 Vp-p/75 Ohm
Scanning System interlace
AGC AUTO
Signal to noise ratio Better than 48dB
White balance AUTO
Gamma Consumption 0.45
Electronic Shutter AUTO
Backlight Compensation AUTO
Power Supply DC12V
Lens 2.8mm
Lens Angle 115°
Current Drain 65±5mA
Operating Temperature -20℃-70℃,RH 95% MAX
Storage Temperature -30℃-80℃,RH 95% MAX

Reliable Safety with HD Imaging

The YWX-802 truck camera system provides drivers with superior reversing vision. It features a 1.3MP high-sensitivity sensor for sharp and accurate images. This clarity helps truck operators identify obstacles quickly and avoid costly damage. Even in dim light, the system ensures smooth visibility for safe maneuvering.

Advanced Night Vision Performance

This truck camera system integrates 18 infrared LEDs with a 7-meter range. It captures clear footage in complete darkness without color distortion. Drivers can rely on the camera when reversing into docks or navigating unlit roads. Strong night vision improves safety for logistics, buses, and heavy-duty fleets.

Flexible Mirror Image Switching

The system supports mirror image switching, making it adaptable to different vehicle setups. Operators can install the unit as a rear, front, or side-view camera. This versatility gives businesses a cost-effective solution for various fleet needs. With quick configuration, drivers always get the best angle for safety.

IP69K Waterproof Protection

The YWX-802 truck camera system is designed for harsh working environments. Its IP69K waterproof rating resists high-pressure cleaning and severe weather. The sealed housing also blocks dust, mud, and temperature fluctuations. Drivers gain reliable performance whether driving through storms or rough terrain.

Rugged Design for Demanding Vehicles

Built with reinforced casing, this truck camera system withstands shocks and vibrations. It is engineered for trucks, trailers, forklifts, and off-road machines. Its rugged build ensures continuous function under extreme conditions. Fleet operators can trust its resilience for long-term use.

Tested and Certified Durability

Each unit undergoes strict waterproof and soaking tests before delivery. YUWX ensures consistent performance through advanced quality assurance. This reliability reduces downtime and maintenance costs for operators. Businesses benefit from a professional-grade camera that keeps vehicles safer.

Wide Application Across Industries

The truck camera system fits multiple applications, including freight transport, RVs, buses, and marine vehicles. It minimizes blind spots, improves operational efficiency, and reduces accident risks. For construction fleets, it enhances visibility in restricted zones. Its universal compatibility meets the needs of modern transport industries.

Why Choose the YUWX Truck Camera System

The YWX-802 waterproof truck camera system combines durability, flexibility, and clarity. Its advanced imaging, infrared night view, and IP69K sealing outperform standard cameras. Drivers gain confidence in every maneuver, while fleet operators improve safety records. Choose YUWX to invest in professional-grade vision technology that delivers lasting value.
